SUITABILITY

The HS 4 Stainless Steel

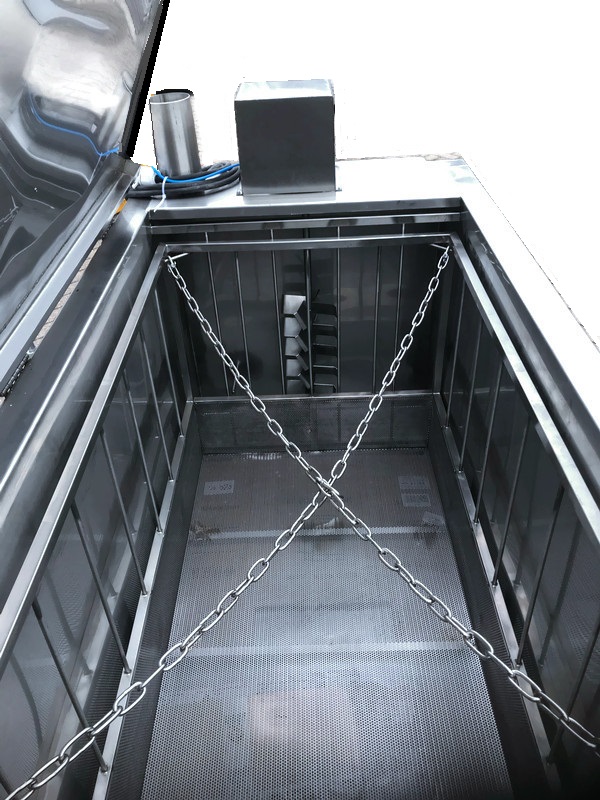

Chemical hot stripping tank comes with a full-length basket that can hold a minimum of 4 wheels.

The baskets construction allows you to crane the wheels out of the chemical without the need to touch the wheels, removing the risk of splashing from dropping the wheel through slippage.

Furthermore, the mesh removes between 85-90% of the paint film depending on chemical used, helping to keep the tank clean from debris.

Suited to large or small workshops

PRINCIPLE OF OPERATION

The tank can be used to submerge wheels in a basket into hot chemical heated to 85c by means of a hot jacket for stripping paint film.

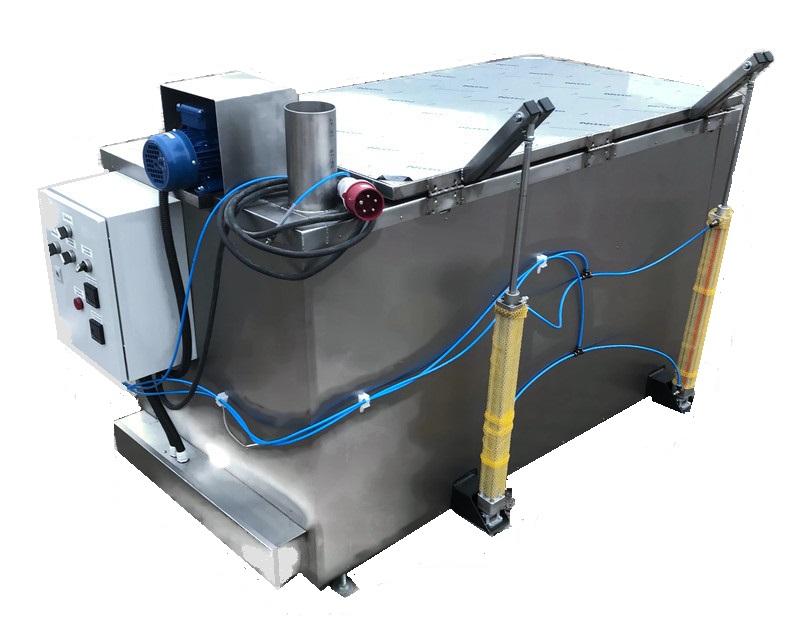

The sealed lid is air operated to reduce the vapour rush to the operator when opening.

CONSTRUCTION

The tank is made of 304 grade stainless steel highly resistant to chemicals and is welded and leak tested.

We strongly recommend using a gantry frame with an electric hoist with this tank.

• Capacity   480-550 litres working level (approx.)
• Temperature Stability < ± 3-5°C
• Ventilation required 805 m3/h
• Electrical requirement Start up 6 kw
• Electrical requirement running  4.0  kw
• Operating temperature 85c
• Temperature Stability < ± 3-5°C

• Ventilation required

• External dimensions    1080 width x 1000 height x 2000 Length
• Internal Dimensions    700 width x 700 height x 1300 Length
• Basket dimensions        630 width x 630 height x 1220 Length
