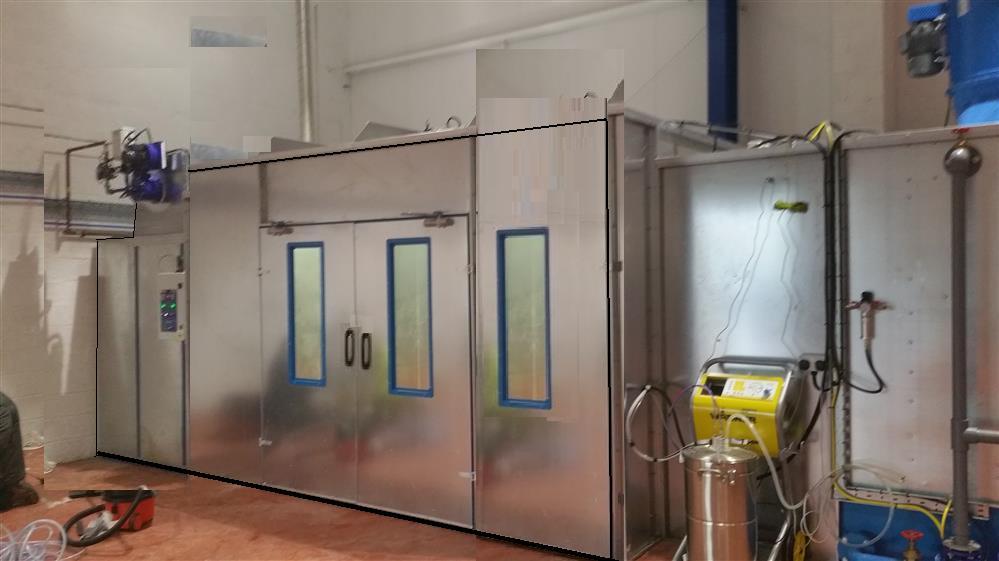

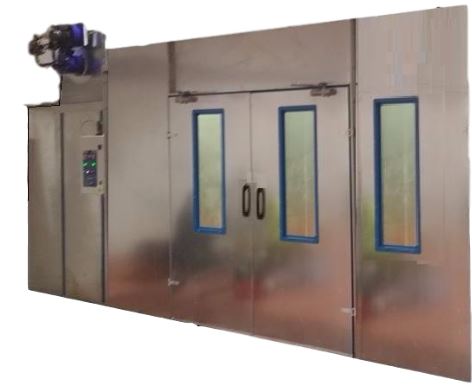

Spray Booth

With a short depth, the Dynaprecipitor booth offers the advantages of a water wash booth while occupying a conventional booth space.

Water tank 2mm plate, integral flanges, galvanized in 76,2 cm lengths bolted together with rubberized sealing compound.
Washing Chamber Bottom panels 2.6mm plate integral flanges fully rust proofed End panels fully detachable for a quick inspection.
Fan Mounting 1.2 galvanized mild steel square to round, flanged mounted in the washing chamber roof panels with angle iron flange to match fan inlet. Supporting steelwork is provided to relieve fan casing of motor weight.
Fan, steel cased centrifugal fan with impeller carried directly on motor shaft fan may be rotated too.

With a short depth, the Dynaprecipitor booth offers the advantages of a water wash booth while occupying a conventional booth space.

Easy Maintenance
A removable manifold and access door below the fan allows for easy booth maintenance. Removable front water curtain panel allows for easy skimming of coagulated paint particles

1. Discharge velocity 9m/sec
2. Unique no-pump washing action ensures EPA compliance
3. Air velocity 0.7m/sec meets EH9 guideline
4. Can be used for both wet and powder coat applications
5. Small foot print.
6. Low maintenance, less down time
7. Complies with HSE /COSSH Regulations (CE marked)

Time saving features
Automatic water level monitoring using special depression valves ensuring the correct water level for maximum efficiency.
Reduced time between major clean out of tank silt dramatically extending the operating availability.

** Please note you cannot purchase from this website, please call us on the number below to discuss the product in more depth **

CALL TODAY: 01604 600581

Specifications

Water tank 2mm plate, integral flanges, galvanized in 76,2 cm lengths bolted together with rubberized sealing compound.
Washing Chamber Bottom panels 2.6mm plate integral flanges fully rust proofed End panels fully detachable for a quick inspection.
Fan Mounting 1.2 galvanized mild steel square to round, flanged mounted in the washing chamber roof panels with angle iron flange to match fan inlet. Supporting steelwork is provided to relieve fan casing of motor weight.
Fan, steel cased centrifugal fan with impeller carried directly on motor shaft fan may be rotated too.

With a short depth, the Dynaprecipitor booth offers the advantages of a water wash booth while occupying a conventional booth space.

Easy Maintenance
A removable manifold and access door below the fan allows for easy booth maintenance. Removable front water curtain panel allows for easy skimming of coagulated paint particles

Optional Accessories

Standard Fitment

Standard Product Features

1. Discharge velocity 9m/sec
2. Unique no-pump washing action ensures EPA compliance
3. Air velocity 0.7m/sec meets EH9 guideline
4. Can be used for both wet and powder coat applications
5. Small foot print.
6. Low maintenance, less down time
7. Complies with HSE /COSSH Regulations (CE marked)

Time saving features
Automatic water level monitoring using special depression valves ensuring the correct water level for maximum efficiency.
Reduced time between major clean out of tank silt dramatically extending the operating availability.

Dimensions
