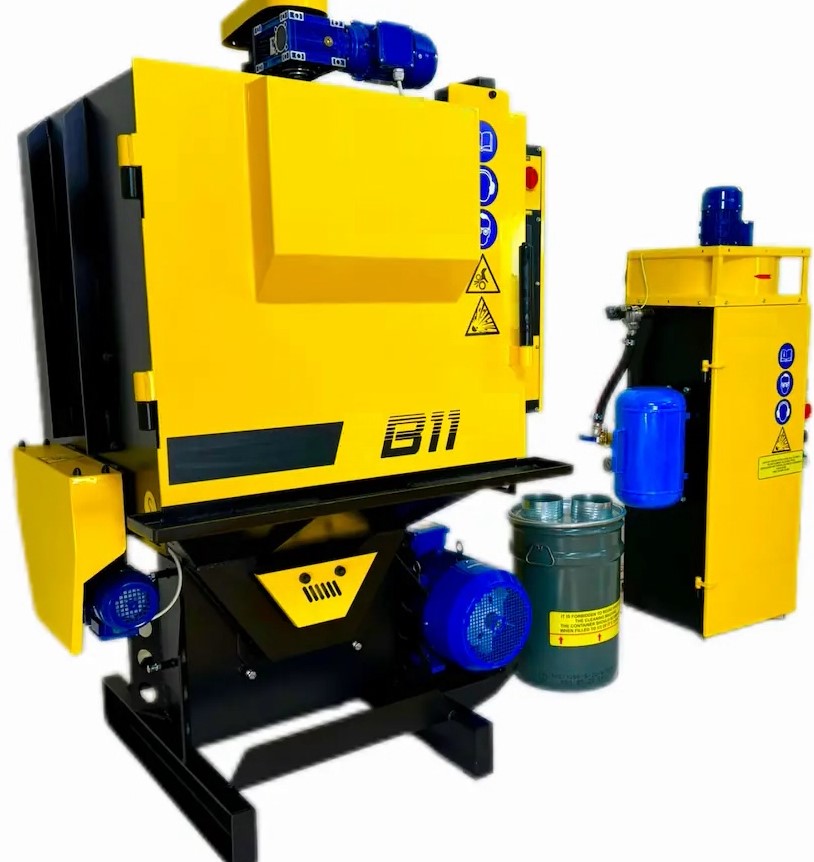

B11 Auto Blaster
The B11 shot blasting machine is an automated shot blasting machine which significantly simplifies the blasting process saving labour time to manually blast.
The blasting of the surface can be controlled by a timer for both light blasting and longer periods where the surface requires a longer blast to remove stubborn corrosion. Shot blasting with the S110 media blasting grit corresponds to sandblasting with a 0.2-1.2 polygrit at a pressure of 7 bar, which gives an Alloy wheel rim surfaces a roughness of 28um-35um, which ensures very good adhesion, for example for powder coat application.
The average loading time for a wheel is just 20 seconds, with the average wheel taking just 60 seconds to blast on each side, highly corroded wheels will take a little between 90 -120 seconds.
The blasting cycle depends on the item to be cleaned and the abrasive used.
The B11 Autoblaster is an enclosed chamber made from toughened steel plate, a propeller throws shot lifted from a trough which the propeller sits in propelling shot at speeds of 2850 -2925 RPM.
Deflector plates are positioned to deflect the shot back at the object being blasted thereby making the process more efficient.
Overhead motorised spinner for hanging items to be blasted
Full automatic operation
Slim line dust extraction cyclone with air pulse auto shaker.
- Electrical requirement: 12 KW 3 Phase /380v 50 Hz
- Running Current 34 Amps
- Working db 85–88 db
The B11 AutoBlaster is fitted with guides, deflector plates and high wear toughed plates as standard, a full range of spares and shot are
Held at our premises in Northampton for next day delivery.
